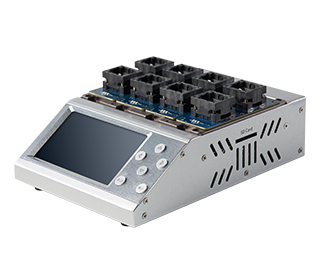

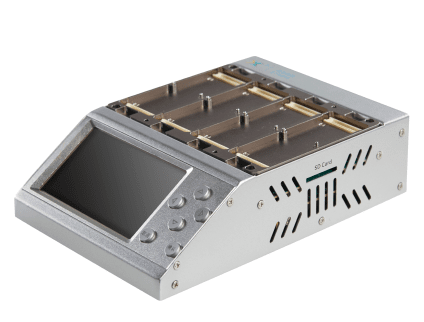

ET9800 1-to-8 Universal Programmer
- Display: 4.3-inch Touchscreen
- Supported Chip (IC) Types: eMMC, MCU, TI DSP, SPI NOR/NAND Flash, Parallel NOR/NAND
- Operating Modes: Online Programming, Offline Programming, Copy Programming
- Supported Chip (IC) Packages: BGA, FBGA, QFN, SOP, etc.
- Dimensions: 225mm x 160mm x 59mm
- Power Input: DC 12V
- Power Consumption: 40W
● Product Overview (烧录器介绍)
The ET9800 is a high-volume production programmer that supports both PC-connected and standalone operation. Developed by Wuhan Wuxin Technology Co., Ltd., it integrates years of programming expertise, industry practice, and deep insights into global user habits. It is designed to program a wide range of chip packages from major manufacturers, including MCUs, eMMC, SPI Nor/Nand Flash, Parallel Nor/Nand Flash, EEPROM, and DSPs.
● Hardware Features (硬件特点)

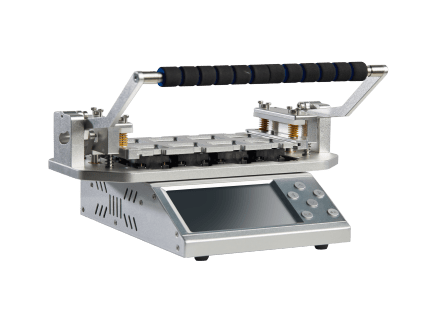

8-Site Capacity: Supports 8 sockets simultaneously, with an optional labor-saving press lever.
High-Performance Architecture: Built on an ARM + FPGA hardware platform, delivering a programming bandwidth of up to 1.6 Gb/s.
Built-in eMMC Module: Features an integrated 128GB eMMC master module for direct eMMC master chip cloning.
User-Friendly Display: Equipped with a 4.3-inch large LCD touchscreen for a seamless standalone operating experience.

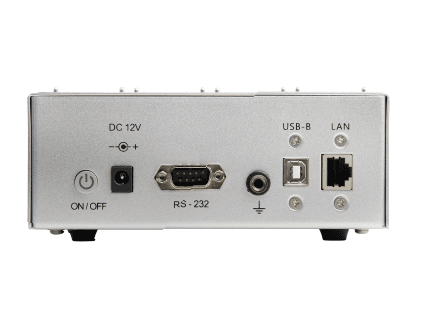

Rich Connectivity: Offers versatile interfaces, including 100/1000M Ethernet, SD card slot, USB 2.0 Device, RS-232 serial port, power switch, and grounding terminals to meet diverse application needs.
Optimized Mechanical Design: Features a specialized structural design to ensure even pressure distribution across the programming sockets.
● Software Features (软件特点)
Comprehensive Software Suite: Provides both host (PC) and firmware (device) software, supporting both PC-connected and standalone programming for an exceptional user experience.
Efficient Algorithm Architecture: Enables rapid addition of new chip support.
Secure Engineering: Supports encrypted projects to enhance production security.
Flexible Interface Implementation: Meets a wide variety of customization requirements.
Secondary Development: Supports secondary development for advanced users.
Automation Customization: Fully supports customized automation integration.
Standalone Project Creation: Allows users to create and manage programming projects directly on the device without a PC
| Hardware specifications | Dimensions (with enclosure): 225 x 160 x 59 mm (Height excludes the programming socket and rubber feet) Weight (with enclosure): 1.85 kg Pin Pitch: 39.00 mm Display: 4.3-inch LCD Touchscreen Interfaces: Rich connectivity options, including 100/1000M Ethernet, SD card slot, USB 2.0 Device, RS-232 serial port, power switch, and grounding terminal. Power Input: 12V DC, center-positive. Please use the included power adapter only. Do not use any third-party adapters. |
| working conditions | Operating Voltage: 110-240 VAC Power: 40W Frequency Range: 50-60Hz Operating Temperature: 0~50℃ Operating Humidity: 70% RH, non-condensing |
| Storage conditions | Storage Temperature: -10~70℃ Storage Humidity: 80% RH, non-condensing |
| standard components | 1 x ET9800 Programmer 1 x USB Cable 1 x Power Adapter |
| After-sales service | 1-Year Hardware Warranty; Lifetime Free Software Upgrades |
