ET6800 Universal 1-to-4 Programmer
- Screen: 2.8-inch Touchscreen
- Operating Modes: Online Programming, Offline Programming
- Programming Methods: Offline Programming, Online Programming
- Supported IC Types: MCU, SPI Nor/Nand Flash, Parallel Nor/Nand Flash, EEPROM, TI DSP, etc.
- Supported IC Packages: BGA, FBGA, QFN, SOP, etc.
- Dimensions: 156mm x 130.7mm x 56.6mm
- Power Input: DC 12V
- Power Consumption: 40W
- Warranty: 1-year free warranty, lifetime free software upgrades
The ET6800 is a versatile, high-speed, 1-to-4 chip programmer developed by Wuhan Wuxin Technology Co., Ltd. Built upon years of programming expertise and industry practice, it was innovatively designed with a deep understanding of user habits and pain points both domestically and internationally. It supports online programming, offline programming, host-connected programming, and standalone programming, and features a 2.8-inch touchscreen interface.
It supports full-series chip programming from major manufacturers — including GD, ST, TI, NXP, Infineon, Cypress, Renesas, Winbond, MXIC, Silicon Labs, Microchip, ARTERY, Fudan, HangShun, Nation, NUVOTON, HDSC, ATMEL, FORESEE, TOSHIBA, ESMT, MICRON, DOSILICON, ISSI, XMC, XTX, and more — covering SPI NOR/NAND, Parallel NOR/NAND, MCU, EEPROM, DSP, CPLD, and FPGA chips. Supported package types include BGA, FBGA, QFN, DFN, WSON, QFP, TQFP, SOP, TSOP, TSSOP, SOIC, DIP, SDIP, PLCC, JLCC, and others. It is suitable for R&D, engineering validation, mass production, and after-sales repair applications.
Product Features
- Versatile 1-to-4 programmer — supports standalone, online, host-connected, and offline programming, eliminating the hassle of managing multiple dedicated programmers.
- High-performance ARM + FPGA architecture — programming bandwidth up to 1.6 Gb/s.
- Built-in 4 GB e-disk — standalone programming without the need for expansion cards.
- Touchscreen operation — 2.8-inch high-resolution LCD display.
- Rich connectivity options — including 100/1000M Ethernet, SD card, USB 2.0 Device, RS-232 serial port, power switch, and grounding terminals to meet diverse application needs.

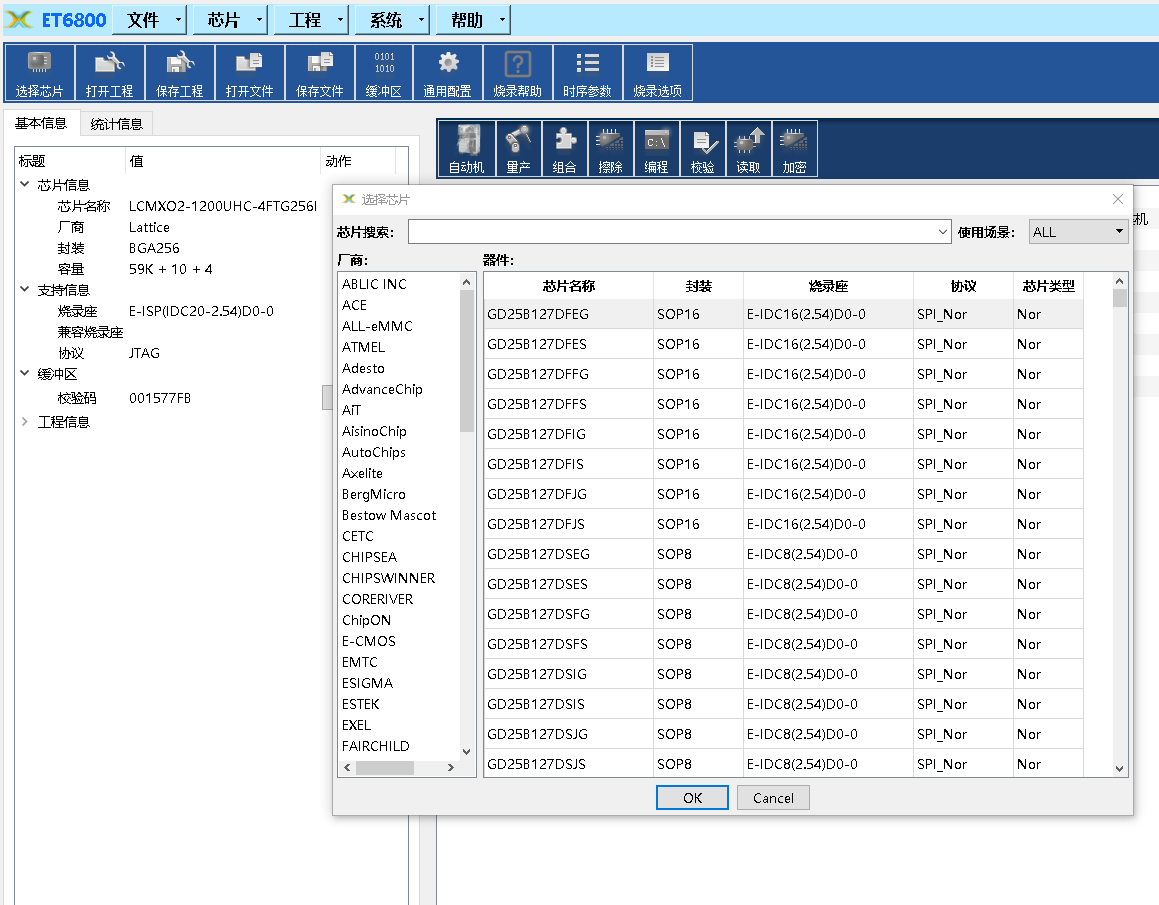

- User-friendly software — powerful host (PC) software and standalone (device) software.
- Broad chip support — MCU, SPI NOR, SPI NAND, EEPROM, Parallel NOR/NAND, DSP, CPLD, and more.
- Multiple machine interfaces — API, USB 2.0, Ethernet, RS-232 serial protocol, and ATE level interface.
- Compatible with common programming machines — tube programmers, tray programmers, tape-and-reel programmers, PCBA inline programming fixtures, etc.
Software Features
- Provides both host and standalone software, supporting connected and offline programming for an excellent user experience.
- Optimized algorithm architecture for rapid addition of new chip support.
- Supports secure/protected projects to enhance production security.
- Rich interface implementations to meet various customization needs.
- Supports secondary development.
- Supports automation customization.
- Supports offline project creation.
Chip Support
- Types: MCU, SPI NOR/NAND, Parallel NOR/NAND, EEPROM, DSP, CPLD, FPGA, etc.
- Manufacturers: GD, Winbond, MXIC, Autochip, FORESEE, ST, TI, NXP, Infineon, Cypress, Renesas, TOSHIBA, Microchip, MICRON, Silicon Labs, Telink, XTX, BYD, and more.
- Quantity: Extensive coverage.
Standard Package Contents
- ET6800 programmer main unit × 1
- USB cable × 1
- Power adapter × 1
| Basic Parameters | Model: ET6800 Type: 1-to-4 universal production programmer Display: 2.8-inch touchscreen Dimensions: 156mm × 130.7mm × 56.6mm Hardware Architecture: ARM Linux + FPGA high-performance hardware architecture Memory: Built-in 4GB eMMC, offline programming supported without expansion card Software: Features user-friendly host software and firmware interface Interfaces: USB 2.0, SD card slot, RS232 serial port, power & ground terminals Operating Modes: Online programming, offline programming, bare-chip programming, in-system programming Chip Operations: Supports erase, program, verify, blank check, read, encrypt, decrypt, etc. Operations can be freely combined into custom workflows for batch production |
| Operating Conditions | Operating Voltage: 110240VAC Power: 40W Operating Temperature: 0~50℃ Operating Humidity: 70% RH, non-condensing |
| Storage Conditions | Storage Temperature: -10~70℃ Storage Humidity: 80% RH, non-condensing |
| Standard Accessories | 1 × ET6800 programmer main unit 1 × USB 2.0 cable 1 × power adapter |
| Service | 1-year free warranty for the entire unit Lifetime free software upgrades Custom development for MES integration |
