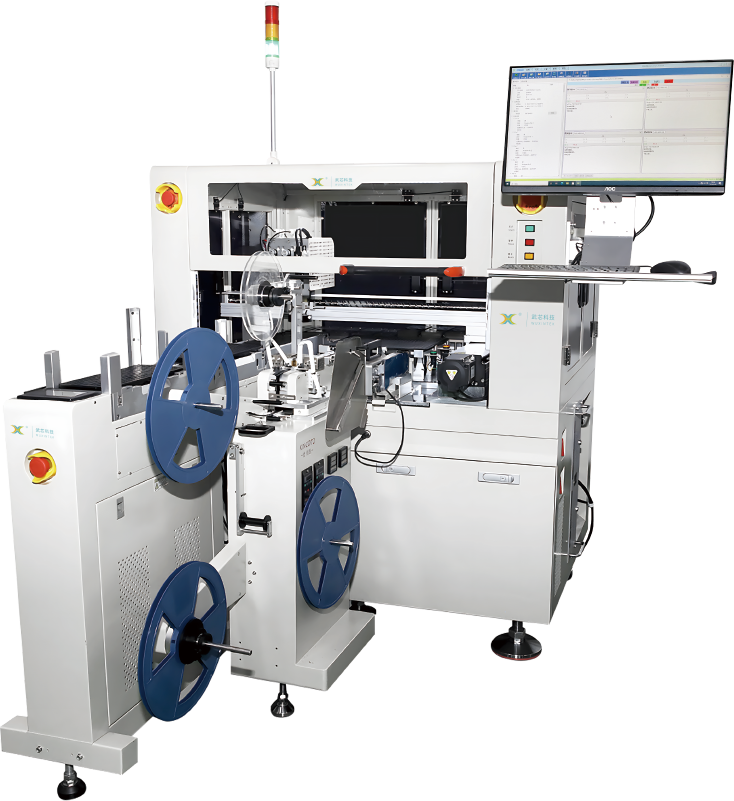

ET9800 Programmer

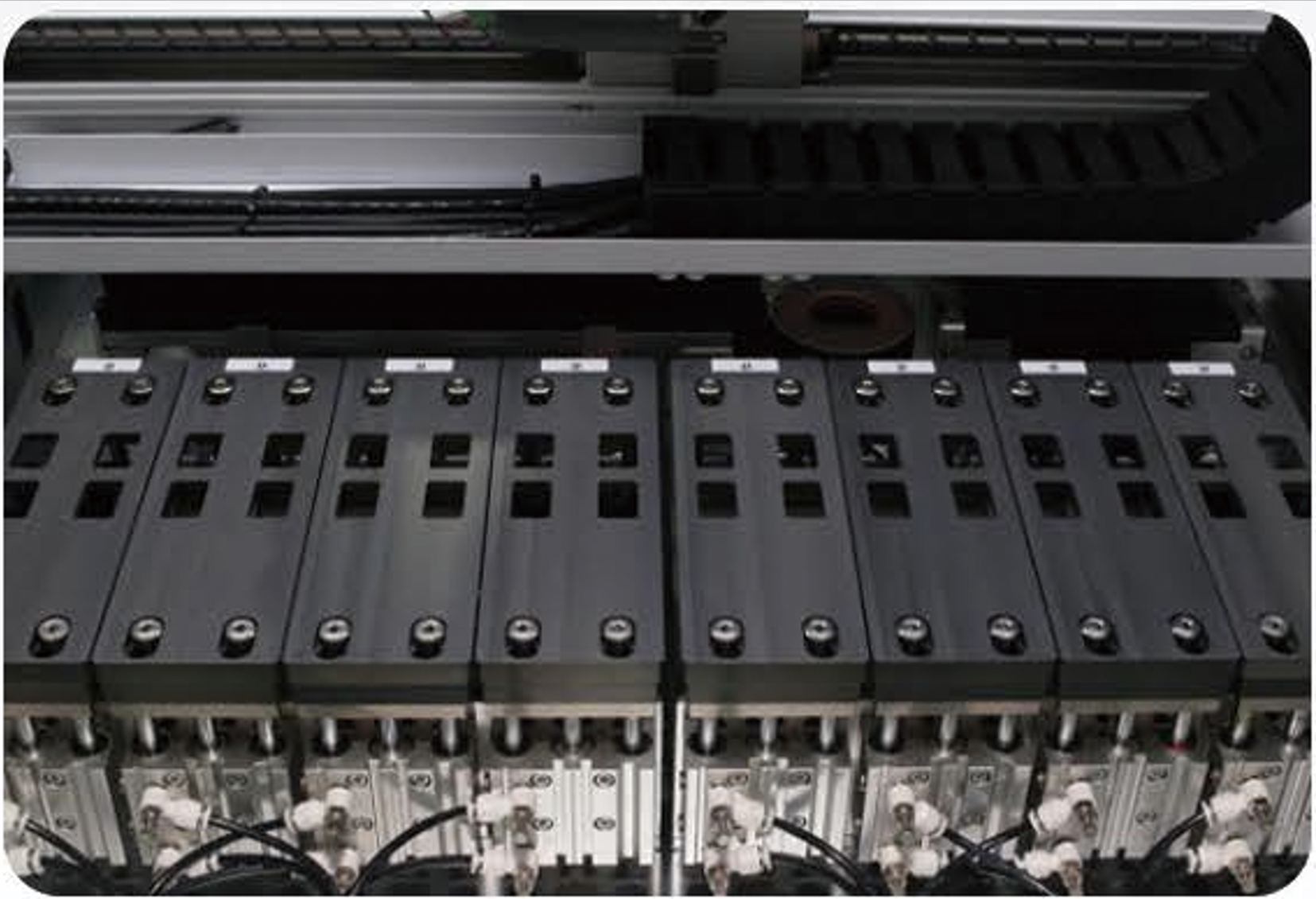

- Programming method: Down-press programming socket

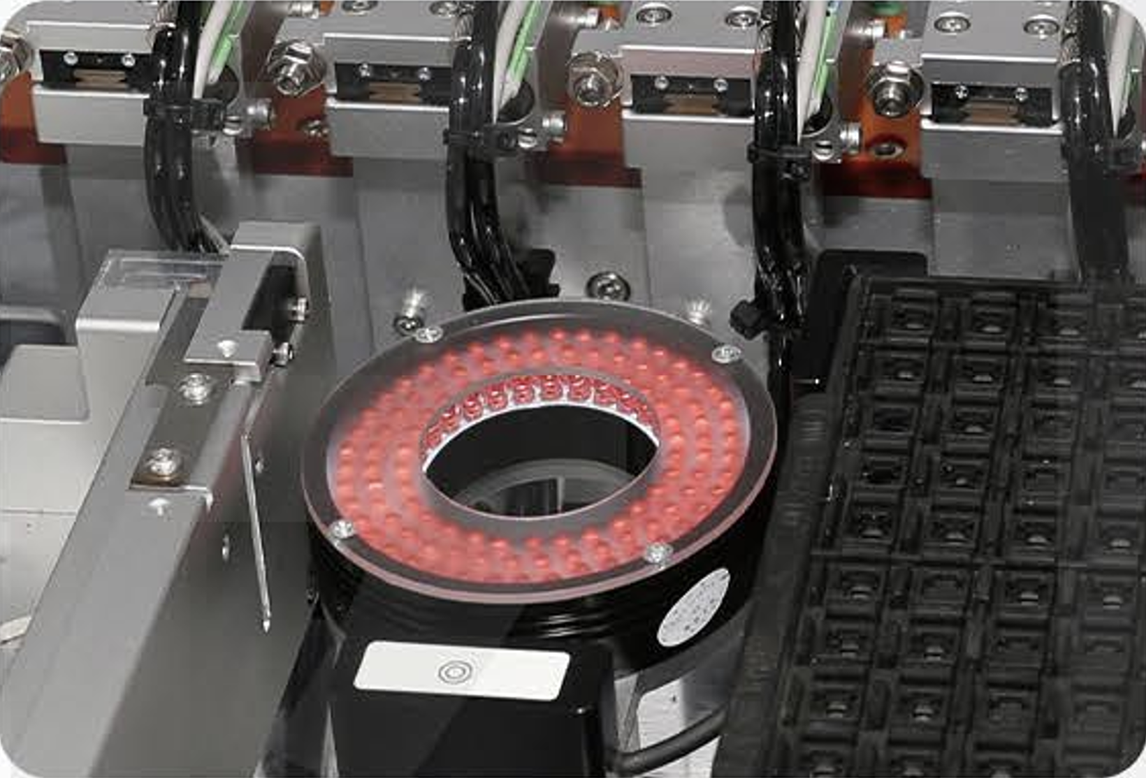

- Positioning system: Top & bottom CCD positioning
- Automatic tray feeder, supports up to 20 trays
- Adjustable automatic heat-sealing device
- Power: 1.3 kW
- Total weight: 620 kg

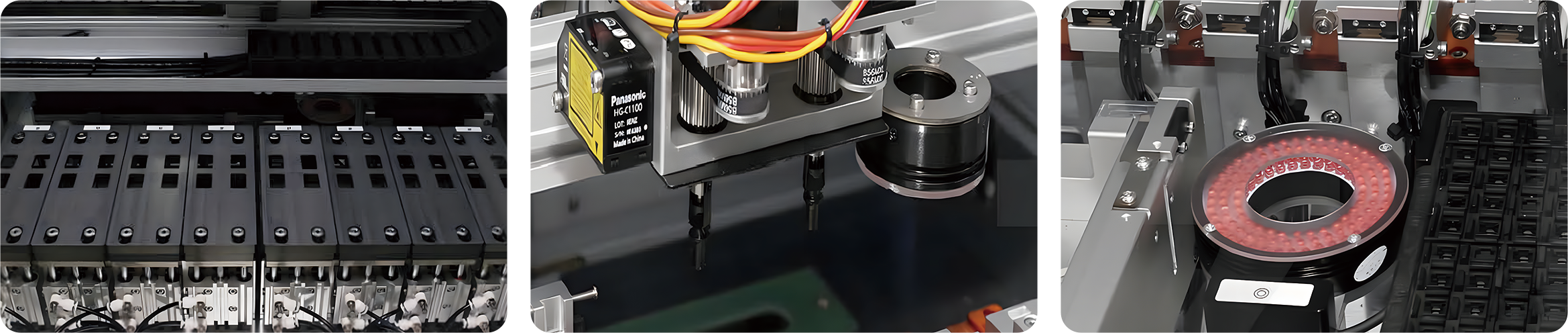

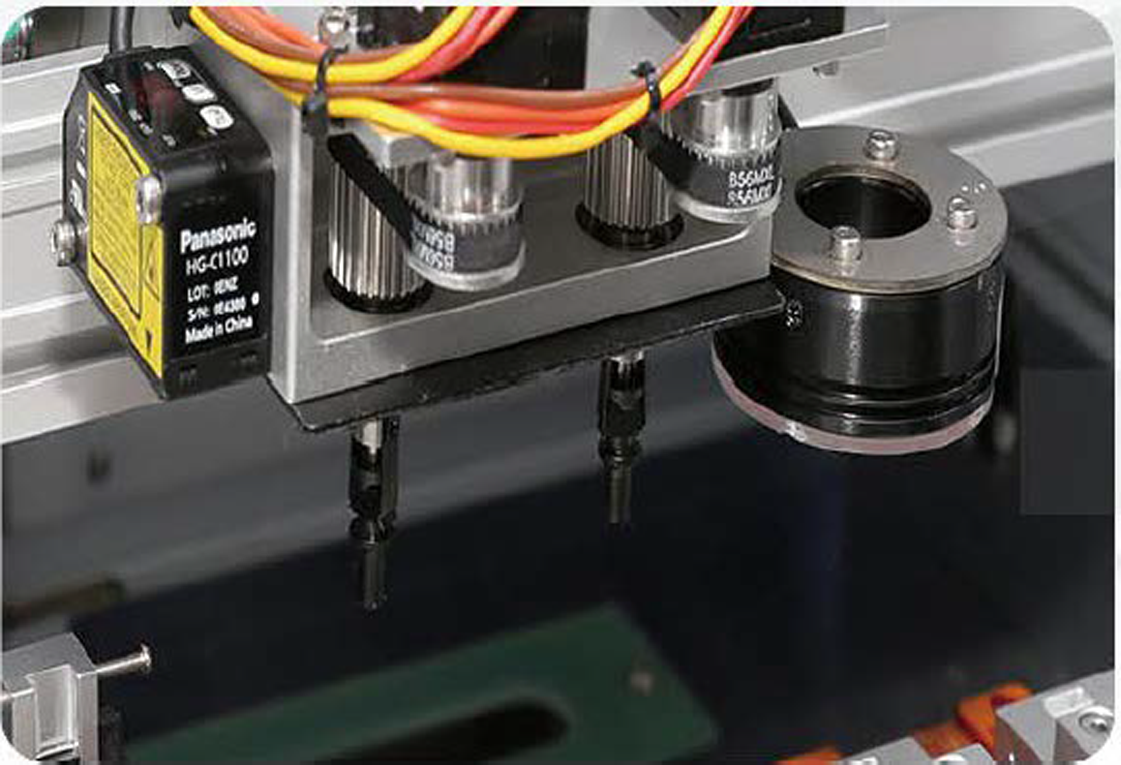

32 stations, built-in 4 units of ET9800 2 vacuum nozzles CCD vision inspection
| Built-in universal programmer | Supports multiple chip package types | Supports multiple chip types |
| Built-in ET9800 universal programmer with 1–32 programmable channels, supporting large-capacity programming files. | Supports SOP / SSOP / TSSOP / SON / QFN / QFP / BGA / FBGA... package types. | Supports SPI Flash / PLCC / EPROM / EEPROM / MCU / MPU / eMMC... |
| Throughput: 2000–2500 UPH | Programming method: Down-press programming socket |
| Machine dimensions: 1250 × 900 × 1710 mm (L × W × H) | Positioning system: Top & bottom CCD positioning |
| Machine + monitor dimensions: 1750 × 900 × 1710 mm (L × W × H) | Tray loading/unloading: Automatic tray feeder, supports up to 20 trays |
| Control method: Embedded control board | Tape feeding: Standard 12–16 mm, optional 8–32 mm feeder |
| Supported IC packages: QFP / QFN / SOP / BGA | Tape output: Adjustable automatic heat-sealing device |
| Programming stations: 32 stations | Input voltage: AC 220V / 50Hz |
| Pick-and-place position: 2 vacuum nozzles | Power: 1.3 kW |
| Display: 19" LED | Air supply: 0.4–0.6 MPa |
| Pick-and-place accuracy: ±0.03 mm | Total weight: 620 kg |
| Overall dimensions: 1750 × 1850 × 1710 mm (L × W × H; machine + tray + tape + monitor) | Vision inspection: CCD |
