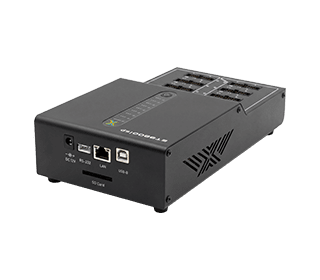

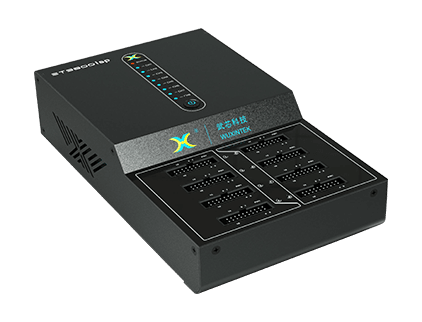

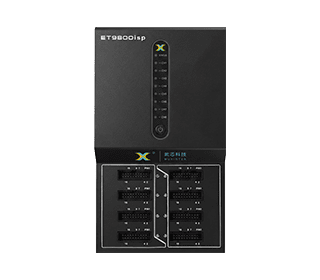

ET9800 ISP Programmer Introduction

The ET9800 ISP is a mass-production programmer supporting both online and offline modes, innovatively developed by Wuhan Wuxin Technology Co., Ltd. based on years of programming expertise and industry practice. It supports burning a wide range of chip types from various manufacturers, including MCU, FPGA, Flash, EEPROM, and DSP.

Product Features

1. Built-in high-performance processor architecture, supporting multi-channel simultaneous programming.
2. Rich communication and expansion interfaces to adapt to various application scenarios.
3. Built-in 8× 20-pin programming interfaces, outputting nearly all programming-related communication protocols, such as JTAG, CJTAG, SWD, SPI, IIC, DAP, UART, CAN-FD, and LIN.
4. When paired with a dedicated signal link expansion board, it enables stable long-distance programming signal transmission. Supports a wide variety of chip types: MCU, FPGA, Flash, EEPROM, DSP, etc.
5. Compact form factor, easy to integrate into FCT, ATE, ICT, and other automated equipment.
6. Provides both host (PC-side) and device (firmware-side) software, supporting online and offline programming for an excellent user experience.
7. Supports secondary development; API interfaces available for C/C++, C#, and LabVIEW.
8. Versatile interface implementations to meet various customization requirements.
9. Supports automation customization.

Chip Support

1. Types: MCU, SPI NOR/NAND, Parallel NOR/NAND, EEPROM, DSP, CPLD, FPGA, Flash, etc.
2. Manufacturers: GD, Winbond, MXIC, Autochip, FORESEE, ST, TI, NXP, Infineon, Cypress, Renesas, TOSHIBA, Microchip, MICRON, Silicon Labs, Telink, XTX, BYD, etc.
3. Quantity: Extensive

Standard Package Contents

1. ET9800 ISP Programmer main unit × 1
2. USB cable × 1
3. Power adapter × 1 set
