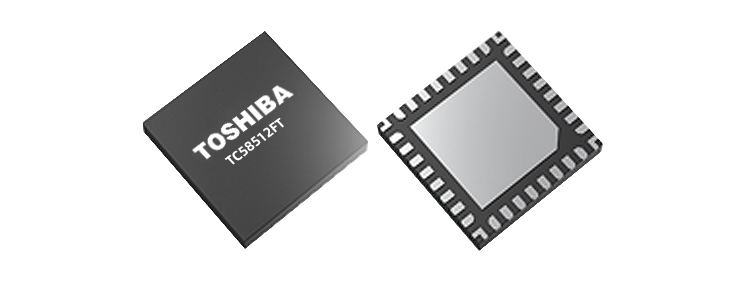

The TC58512FT is a single-supply 3.3V, 512-Mbit (553,648,128 bits) NAND Electrically Erasable Programmable Read-Only Memory (NAND E2PROM) manufactured by TOSHIBA. Its memory organization of 528 bytes × 32 pages × 4,096 blocks further enhances data management efficiency and storage density.

This chip features a 528-byte static register that supports data transfers in 528-byte units, thereby improving system read/write efficiency and reducing transfer latency. Erase operations are performed on a block-by-block basis (16 Kbytes + 512 bytes: 528 bytes × 32 pages), making data updates and storage operations more efficient and precise.

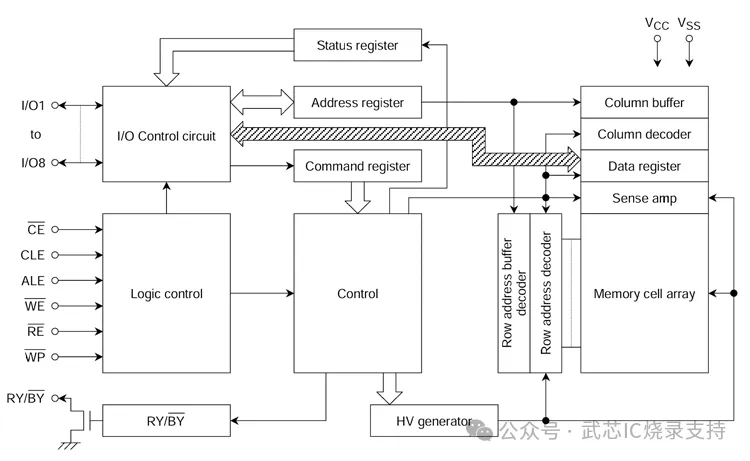

Designed as a serial-type memory, the TC58512FT utilizes I/O pins for address and data input/output, as well as command inputs. Commands, addresses, and data are time-multiplexed over the same set of I/O pins. With erase and program operations executing automatically, this device is highly suitable for solid-state file storage, voice recording, digital camera image storage, and other systems requiring high-density non-volatile memory.

Key Features:

Organization

Memory Cell Array: 528 x 128K x 8

Register: 528 x 8

Page Size: 528 Bytes

Block Size: (16K + 512) Bytes

Operation Modes

Read / Reset / Auto Page Program / Auto Block Erase / Status Read

Multi-Page Program / Multi-Block Erase Mode Control

Serial Input/Output & Command Control

Power Supply

VCC: 2.7 V to 3.6 V

Endurance

Program/Erase Cycles: 1E5 cycles (with ECC)

Access Time

Cell Array to Register: Max. 25 μs

Serial Read Cycle: Min. 50 ns

Operating Current

Read (50 ns cycle): Typ. 10 mA

Program (Average): Typ. 10 mA

Erase (Average): Typ. 10 mA

Standby: 100 μA

Package

TSOP-I 48-P-1220-0.50 (Weight: Typ. 0.53 g)

As a manufacturer of general-purpose chip programmers, Wuxin Technology is dedicated to the fields of IC programming and testing. While continuously optimizing and updating its programming software, the company is also actively expanding its support to accommodate chip models from major manufacturers.

The ET9800 programmer supports 1-to-8 simultaneous programming and offers both online and offline operating modes. It comprehensively meets the mass production requirements for bare-die offline programming and in-system programming (ISP) of TOSHIBA TC58512FT series chips.

The ET9800 is a high-speed, mass-production programmer that supports both online and offline operations. Powered by a high-performance ARM + FPGA hardware architecture, it delivers a programming bandwidth of up to 1.6 Gb/s. Featuring a built-in 128GB eMMC master module, it significantly enhances the mass production efficiency of eMMC master chip copying. The device is equipped with a 4.3-inch LCD touchscreen to optimize the user experience for offline operations. It supports 1-to-8 parallel programming to meet complex and diverse programming needs. Additionally, it integrates a wide range of interfaces—including 100/1000M Ethernet, SD card, USB 2.0 Device, RS-232 serial port, power switch, and grounding terminals—allowing flexible adaptation to various application scenarios.

Supported by both host and device software, the ET9800 enables automated scenario customization to meet smart production line requirements. It ensures stable and efficient programming for MCUs, eMMCs, SPI, NOR/NAND Flash, Parallel NOR/NAND Flash, EEPROMs, and DSPs in various packages from major manufacturers, providing customers with innovative, multi-scenario IC programming solutions.
