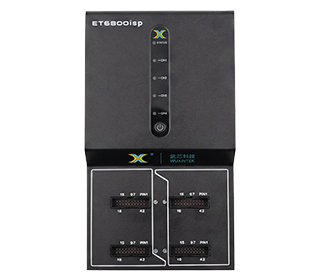

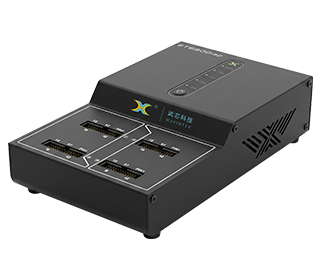

ET6800 ISP Programmer Introduction

The ET6800 ISP is a next-generation mass-production in-system programmer, innovatively crafted by Wuxin Technology based on years of accumulated programming expertise and industry practice. It features a high-performance ARM processor paired with a powerful FPGA architecture, supporting 4-channel simultaneous programming and a wide-range signal level output of 1.2V to 5V.

As a high-speed programmer capable of both online and offline operation, the ET6800 ISP supports a wide variety of chips from major manufacturers, including MCUs, FPGAs, Flash, EEPROM, and DSPs, ensuring stable and efficient programming.

Hardware & Interfaces

1.Built-in High-Performance Architecture: Equipped with a robust internal processor.

2.Multi-Channel Support: Supports up to 4 channels for simultaneous programming.

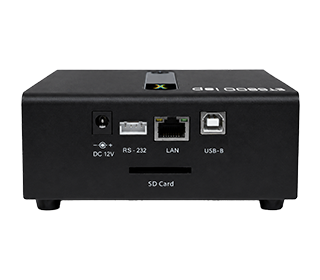

3.Rich Connectivity: Provides diverse communication and expansion interfaces, including 100/1000M Ethernet, SD Card, USB 2.0 Device, and RS-232 Serial Port, adapting to various application scenarios.

4.Versatile Protocols: Features four 20-pin programming interfaces capable of outputting nearly all programming-related communication protocols, such as JTAG, CJTAG, SWD, SPI, IIC, DAP, UART, CAN-FD, and LIN.

Hardware Specifications

1.Dimensions: 210 x 125 x 50 mm.

2.Weight: 1.8 kg.

3.Power Outputs: 4 programming interfaces, with each interface capable of outputting 2 power lines (VDD and VPP).

4.VDD Output: Voltage range of 1.2V to 5V, with a maximum output current of 250mA per channel.

5.VPP Output: Voltage range of 6V to 10V, with a maximum output current of 200mA per channel.

6.Signal Levels: Programmable signal voltage levels ranging from 1.2V to 5V.

7.Power Input: Requires a 12V input (center positive, sleeve negative). Please use only the standard power adapter provided; the use of other adapters is prohibited.
