Wuxin Programmer Supports Programming for TOSHIBA TH58BVG3S0HBAI4 Chip

The TH58BVG3S0HBAI4 is a single 3.3V, 8 Gbit (8,858,370,048 bits) NAND Electrically Erasable Programmable Read-Only Memory (EEPROM). Its memory organization is (4096 + 128) Bytes × 64 Pages × 4096 Blocks. To break it down: each page consists of a 4096-byte main data area and a 128-byte spare area, totaling 4224 bytes. A block comprises 64 pages, and the entire memory array consists of 4096 blocks.

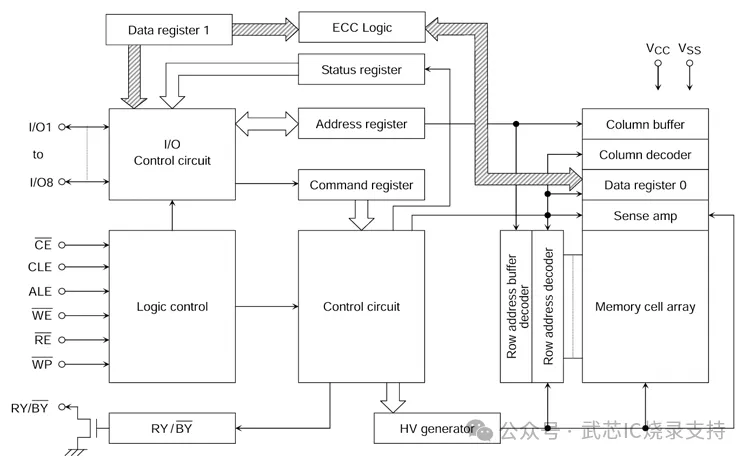

Internally, the chip features a 4224-byte static register, allowing program and read data to be transferred between the register and the memory cell array in 4224-byte units. Read and write operations are performed on a page basis, while erase operations are performed on a block basis. Erase operations are executed block by block, with each block comprising 4224 Bytes × 64 Pages, equating to 256 Kbytes plus 8 Kbytes. Furthermore, the chip incorporates ECC logic capable of internally correcting 8-bit read errors per 528 bytes. This means it automatically applies error correction to data during read operations based on internal rules, thereby enhancing data reliability.

The TH58BVG3S0HBAI4 employs a serial-type memory design, utilizing I/O pins for address and data input/output, as well as command input. Commands, addresses, and data are time-multiplexed over the same set of I/O pins, allowing erase and program operations to be executed automatically. This makes the device highly suitable for solid-state file storage, voice recording, image file storage in digital cameras, and other systems requiring high-density non-volatile data storage.

Key Features:

Organization: x8

Memory Cell Array: 4224 × 128K × 8 × 2

Register: 4224 × 8

Page Size: 4224 Bytes

Block Size: (256K + 8K) Bytes

Operations: Read mode, Reset, Auto Page Program, Auto Block Erase, Status Read, Page Copy, Multi-Page Read, Multi-Page Program, Multi-Block Erase, ECC Status Read

Mode Control: Serial Input/Output Command Control

Valid Block Count: Min. 4016 Blocks, Max. 4096 Blocks

Power Supply (VCC): 2.7V to 3.6V

Access Time: Cell Array to Register 55 μs Typ. (Single Page Read) / 90 μs Typ. (Multi-Page Read); Serial Read Cycle 25 ns Min. (CL=50pF)

Program/Erase Time:

Auto Page Program: Approx. 340 μs per page

Auto Block Erase: Approx. 2.5 ms per block

Operating Current:

Read (25 ns cycle): Max. 30 mA

Program (Average): Max. 30 mA

Erase (Average): Max. 30 mA

Standby: Max. 100 μA

Package: P-TFBGA63-0911-0.80CZ (Weight: Typ. 0.165 g)

Wuxin Technology, a manufacturer of universal chip programmers, specializes in the IC programming and testing industry. While continuously optimizing and updating its programming software, the company is actively expanding compatibility to support chip models from various major manufacturers. The ET9800 programmer supports 1-to-8 simultaneous programming and offers both online and offline operating modes. It comprehensively meets the mass production requirements for TOSHIBA TH58BVG3S0HBAI4 series chips, fully supporting both bare-die offline programming and in-system programming (ISP).

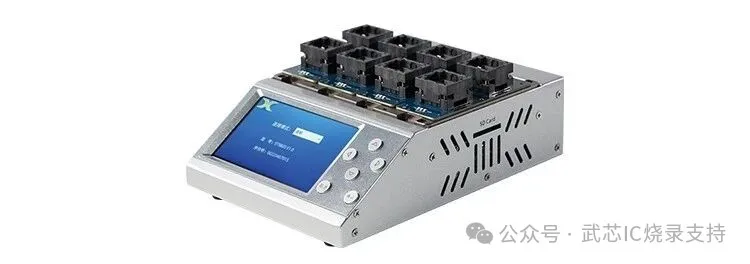

The ET9800 is a high-speed mass-production programmer that supports both online and offline operating modes. Built on a high-performance ARM + FPGA hardware architecture, it delivers a programming bandwidth of up to 1.6 Gb/s. It features a built-in 128GB eMMC host module, which significantly boosts mass production efficiency for eMMC host chip copying. Equipped with a 4.3-inch LCD touchscreen, it offers an optimized interactive experience for offline operations. Supporting 1-to-8 parallel programming, the ET9800 effortlessly handles complex and diverse programming requirements. Furthermore, it integrates a rich variety of interfaces—including 100/1000M Ethernet, SD card, USB 2.0 Device, RS-232 serial port, power switch, and grounding terminals—ensuring flexible adaptation to various application scenarios.

Additionally, the device provides both host and embedded software, supporting customized automation to meet the demands of smart production lines. It is compatible with MCUs, eMMC, SPI, NOR/NAND Flash, Parallel NOR/NAND Flash, EEPROM, and DSP chips from major manufacturers in various packages. Delivering stable and highly efficient programming, the ET9800 provides customers with innovative IC programming solutions for multiple scenarios.
