The TC58NVG0S3CTA00 series is a NAND E²PROM memory device from TOSHIBA. Operating on a single 3.3V power supply, this 1 Gbit device offers a total storage capacity of approximately 1,107,296,256 bits. Its large storage space makes it highly suitable for applications requiring massive data storage.

The device is organized as (2048 × 64) Bytes × 64 Pages × 1024 Blocks. It is equipped with two 2112-byte static registers, allowing data and program transfers in 2112-byte units, which significantly enhances data processing efficiency. Utilizing a serial interface, it requires only a minimal number of I/O pins for address, data, and command input/output operations. Additionally, the chip features automatic erase and program functions, ensuring a highly efficient and stable storage process without manual intervention. These characteristics make it widely used in embedded systems, industrial equipment, and consumer electronics, such as high-end solid-state storage, voice recording systems, and image capture devices.

Key Features:

• Memory Cell Array: 2112 × 64K × 8
• Register: 2112 × 8
• Page Size: 2112 Bytes
• Block Size: (128K + 4K) Bytes
• Supported Commands: Read, Reset, Auto Page Program, Auto Block Erase, Status Read, Page Copy, Multi-Page Program, Multi-Block Erase, Multi-Page Copy, Multi-Page Read
• Mode Control: Serial Input/Output Command Control
• Valid Block Count:
• Power Supply: VCC = 2.7 V to 3.6 V
• Access Time:
• Program / Erase Time:
• Operating Current:
• Package: TC58NVG0S3CTA00 TSOP I 48-P-1220-0.50 (Weight: 0.53 g Typ)

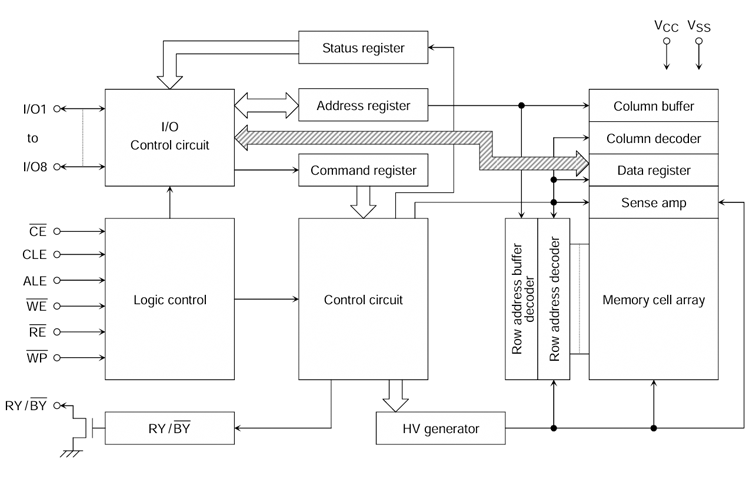

Internal Block Diagram

As a manufacturer of universal IC programmers, Wuxin Technology focuses on the fields of IC programming and testing. While continuously optimizing and updating its programming software, the company is also actively expanding its compatibility with chip models from major manufacturers.

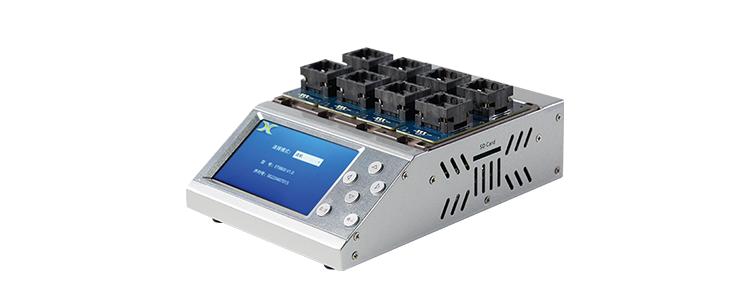

The ET9800 programmer supports an 8-channel simultaneous programming configuration and offers both online and offline operating modes. It comprehensively meets the bare-die offline programming requirements for the TOSHIBA TC58NVG0S3CTA00 chip.

The ET9800 is a high-speed, mass-production programmer that supports both online and offline operating modes. Built on a high-performance ARM+FPGA hardware architecture, it delivers a programming bandwidth of up to 1.6 Gb/s. It features a built-in 128GB eMMC socket module to significantly enhance the mass-production efficiency of eMMC master chip copying. Equipped with a 4.3-inch LCD touch screen, it provides an optimized interactive experience for offline operations.

Supporting 8-channel simultaneous programming, the ET9800 can handle complex and diverse programming requirements. The device integrates a rich variety of interfaces, including 100/1000M Ethernet, SD card slot, USB 2.0 Device, RS-232 serial port, power switch, and grounding terminals, ensuring flexible adaptation to various application scenarios.

Additionally, it comes with both host and embedded software, supporting customized automation scenarios to meet the demands of smart production lines. The programmer ensures stable and highly efficient programming for a wide range of chip types and packages from major manufacturers, including MCUs, eMMCs, SPI Nor/Nand Flash, Parallel Nor/Nand Flash, EEPROMs, and DSPs. Wuxin Technology is committed to providing customers with innovative, multi-scenario IC programming solutions.
